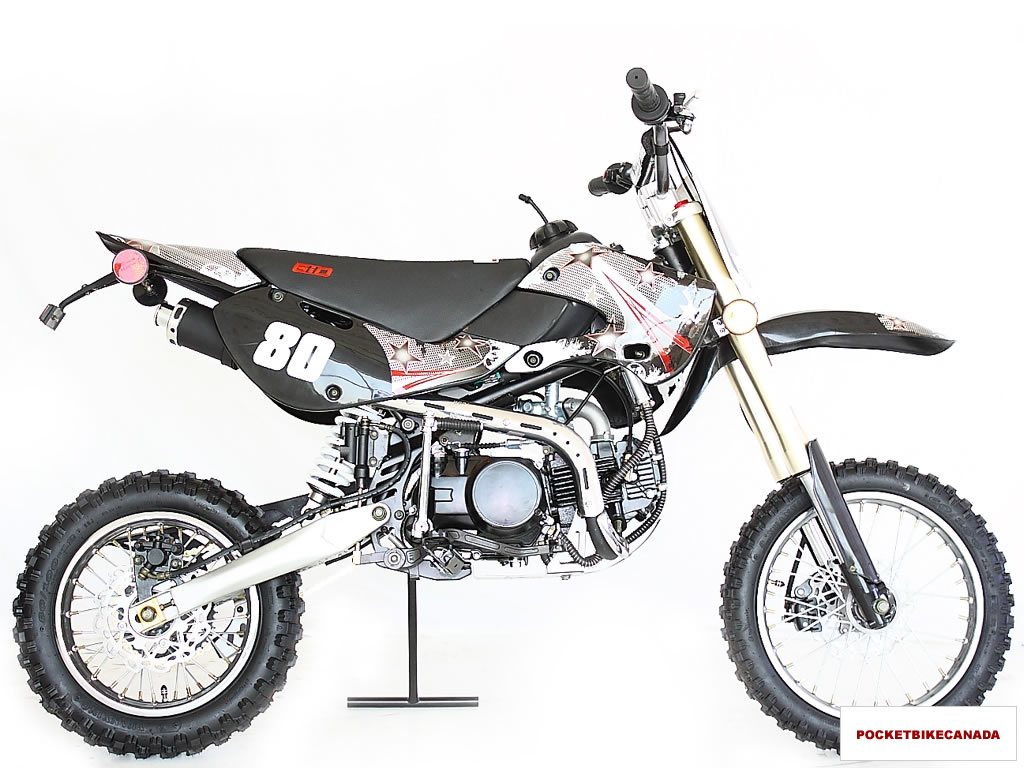

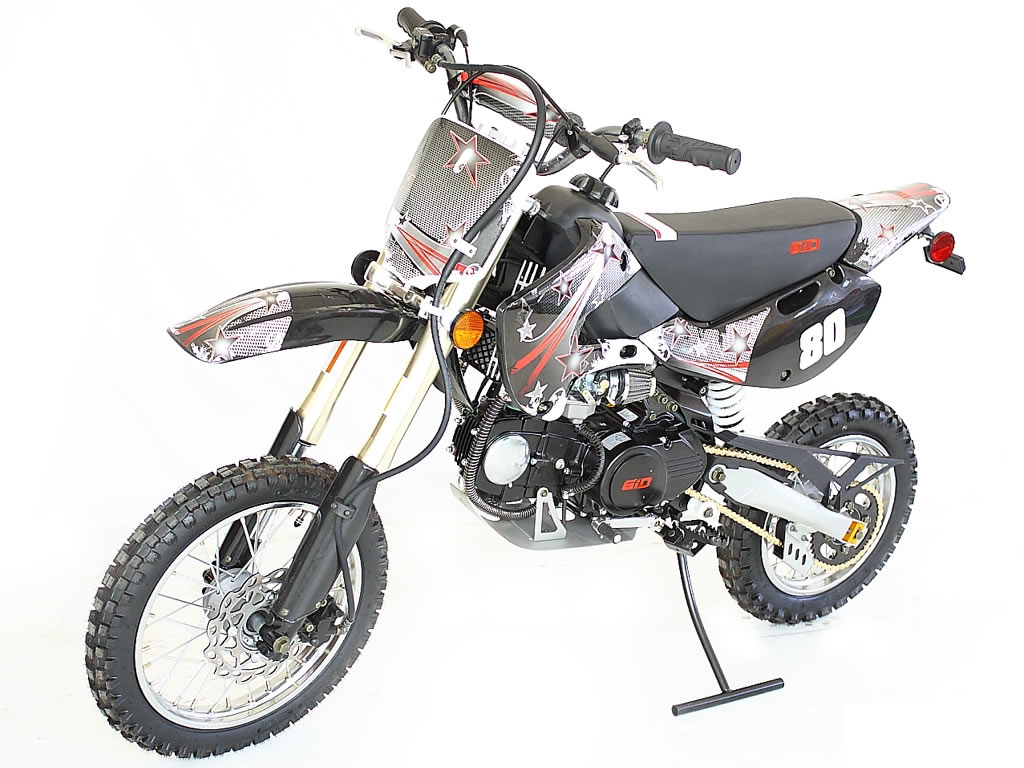

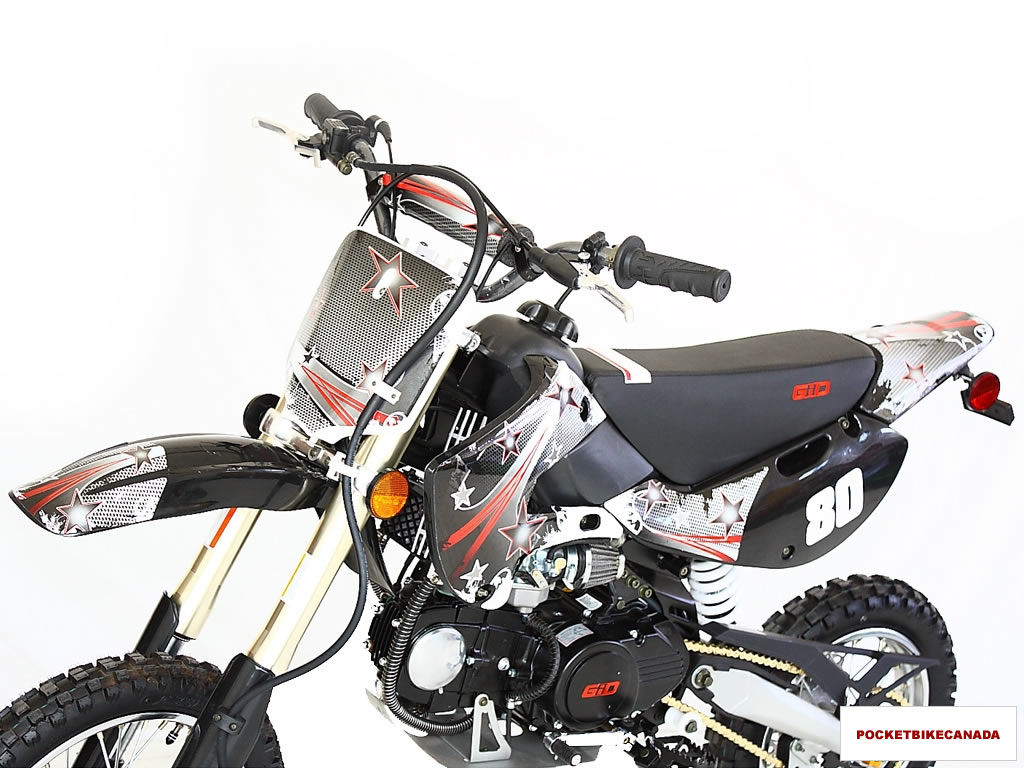

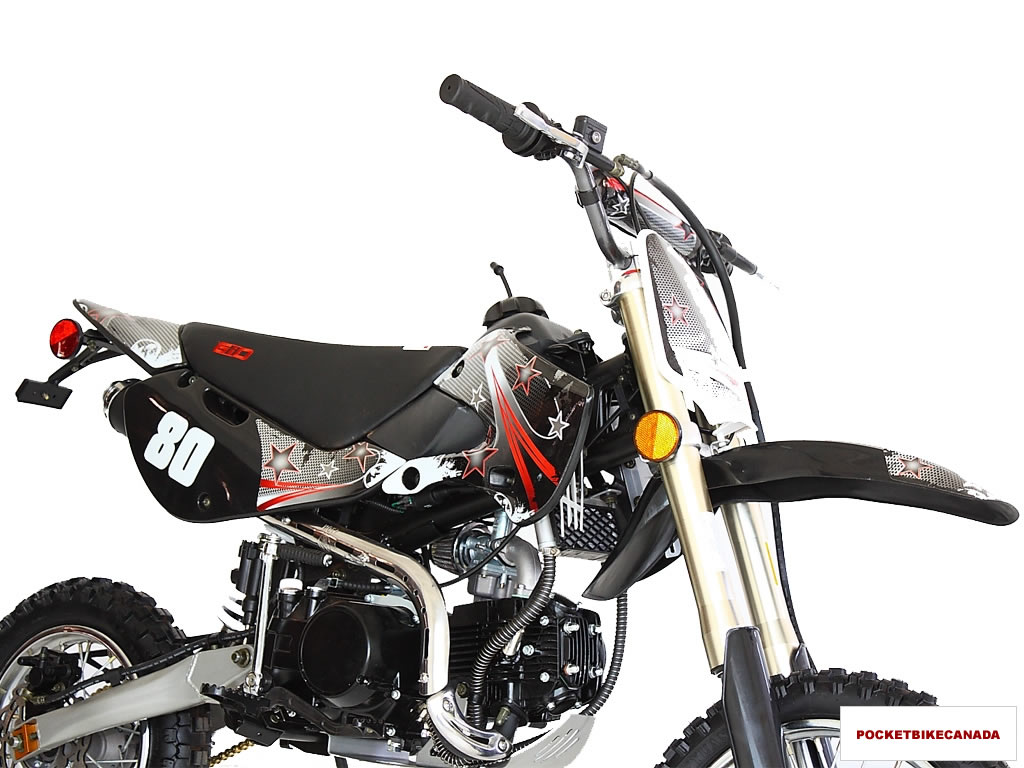

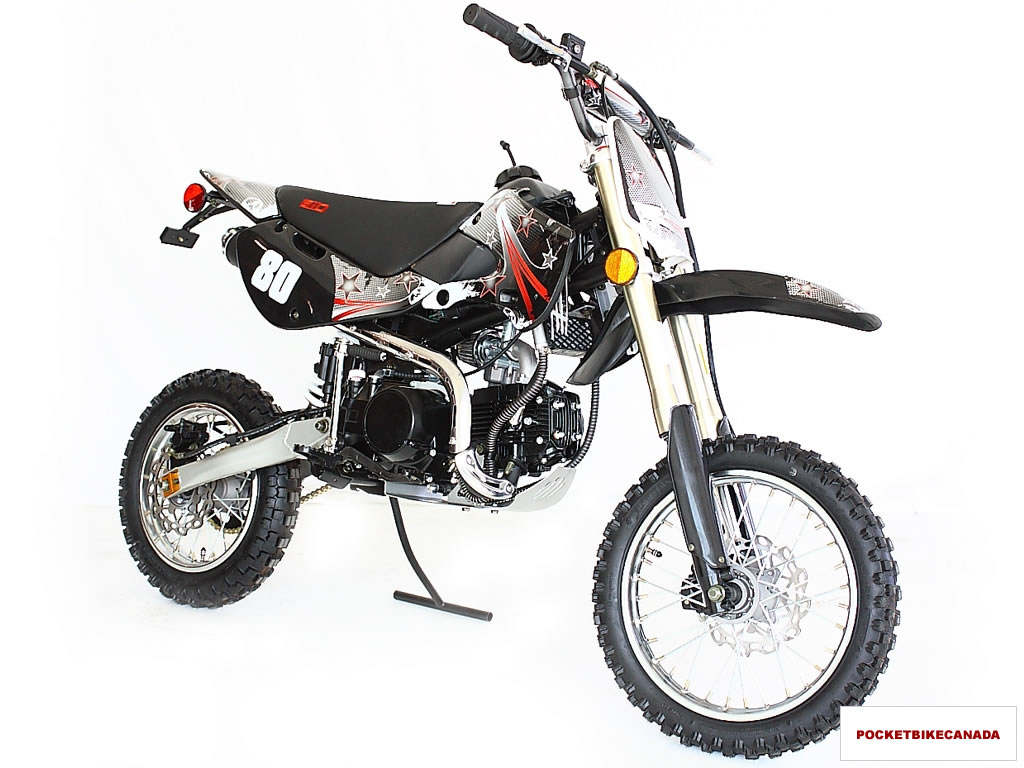

Brand new, high performance 140cc Oil Cooled Dirt bike. This model is higher end version of 125cc dirt bike with 4 stroke air cool engine. This bike will be a perfect fit for someone who has experience with off road dirt bikes and wish to have more power, better construction, performance, look compared to the 125cc.
From the tightest mountain trails to the wide-open desert, the GIO 140cc X80 Dirt Bike has what it takes to get the job done, with no need to work overtime at the controls.
| Engine |
| Engine type |
Four-stroke, single cylinder, |
| Displacement |
140.4ml (140cc) |
| Bore x stroke |
56x57mm |
| Compression ratio |
9.4:1 |
| Starter |
kick start |
| Transmission |
Four-speed with manual clutch |
| Carburetor |
PZ26 |
| Control |
2V/ OHC |
| Lubrication method |
pressure and splash |
| Engine lubrication |
15 W / 40SE |
| Primary drive |
3,27 |
| Final drive |
16:41 |
| Cooling |
Oil Cool |
| Clutch method |
Manual wet multi-plate |
| Ignition method |
CDI |
| Chassis |
| Frame |
Steel |
| Subframe |
Steel |
| Handlebar |
Steel 740mm low |
| Front suspension |
Inverted and hydraulic fork 42-48*735mm leng |
| Rear suspension |
Hydraulic and damping non-adjustable shock ab |
| Suspension travel front/rear |
160mm / 50mm (6.30in./1.96in. ) |
| Brakes, front/rear |
Hydraulic single petal disc with single pisto |
| Rims, front/rear |
F:1.47*14"; R:1.85*12" |
| Tires, front/rear |
F:60/100 - 14" ; R:80/100 -12" |
| Chain |
KMC 420-104L |
| Main silencer |
Aluminium tip |
| Steering head angle |
45° |
| Wheel base |
1170mm /46.06in. |
| Ground clearance (unloaded) |
300mm /11.81in. |
| Seat height |
800mm /31.49in. |
| Tank capacity |
3.9L /1.03gal. |
| Weight (no fuel) |
64.56kg/142.33lbs |
|
|
Brand new, redesigned 140cc, 4-Stroke, single cylinder, OIL cooled engine for superior quality.
This engine has more of a punch and packs in more torque than any other model. Completely detailed with a slick black
overcoat and chromed out parts.
|
|
|
|
|
|
Durable, dependable and affordable. What more could you ask for?
How about a chromed high-end exahust for optimal performance and amazing esthetics. Also complemented with a chrome kick start lever.
|
| |
|
|
|
|
Lightweight piston, piston pin and connecting rod enable higher revs for maximum power. Good mass centralization for superior handling.
|
| |
|
|
|
|
Great quality, clean chrome tipped air filter.
|
| |
|
|
|
|
Re-enforced swing arm for stability and reliability. |
| |
|
|
|
|
Specially designed, thickly padded seat is wide and contoured for incomparable rider comfort.
|
| |
|
|
 |
|
High quality clutch lever with extra studded rubber throttle grips.
|
| |
|
|
|
|
Steel triple tree and handle bar clamps beautifully covers the O.E.M brushed aluminum.
|
| |
|
|
|
|
Matching adjustable rear hydraulic shock.
|
| |
|
|
|
|
Redesigned exhaust set-up incorporates a left-side cylinderhead exhaust port that helps increase header length,
allowing the muffler to move closer to the bike's center of mass.
|
| |
|
|
|
|
High end rear caliper.
|
| |
|
|
|
|
Complete rear wheel package; re-enforced swing-arm, caliper, chain, chain guard and hydraulic disk brakes.
|
| |
|
|
|
|
Front Tire:
AT2.5-14
High-grade tire compound for exceptional durability and also offers outstanding intermediate-to-hard terrain performance.
|
| |
|
|
 |
|
Rear Tire:
AT3.00-12
Rear tire design offers maximum straight line traction and control under hard braking conditions. |
