SHOK Zappy - Compact 3-Wheel Seated Electric Scooter, 48V, 500W, 12Ah, Compact Padded Saddle, Red - SKM1545RD
Typically takes no more then 14 days for delivery.
SHOK Zappy
Compact 48V mobility with the open feel of a padded saddle

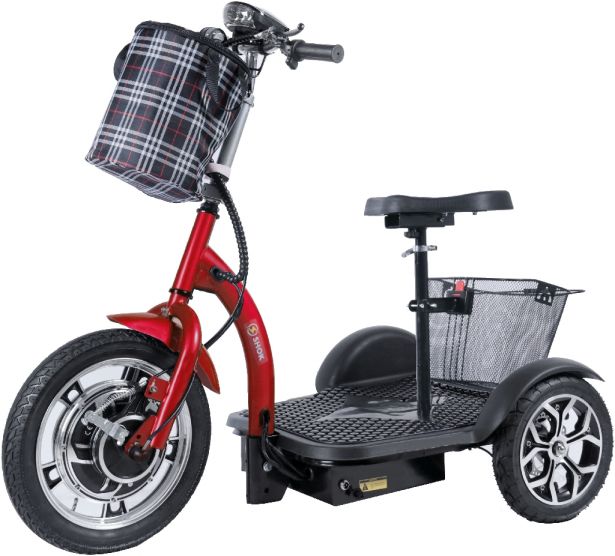

The SHOK Zappy is a compact three-wheel seated electric scooter for adults who want an easy step-through layout, large pneumatic tires and considerably more travel speed than a conventional 6 km/h mobility scooter. Its 48V 500W front hub motor and 48V 12Ah sealed lead-acid battery system deliver smooth, useful power with three selectable speed settings, reverse and an estimated range of up to 40 km (24.9 miles) under favourable conditions.
This Compact Padded Saddle version uses a simple backless saddle that keeps the rider area open and makes it easy to shift position. The adjustable seat height helps reduce the amount of knee bend needed when sitting down or standing up. A large 16 x 2.50 pneumatic front tire and two 12 1/2 x 2 1/4 pneumatic rear tires give the Zappy a substantial rolling footprint for maintained outdoor surfaces.
The keyed control system includes three speed settings, forward and reverse, an LED display, twist-style throttle, horn and front LED headlight. A hand-operated front drum brake provides familiar bicycle-style control. Full front and rear fenders help contain road spray and debris, and the steel frame provides a solid base for everyday use.
The handlebar stem folds down to reduce the storage height. This is a fold-down stem design, not a complete folding chassis. At approximately 50 kg assembled, use a suitable loading ramp, lift or two-person lift for vehicle transport.
Why Choose the SHOK Zappy?
- 48V 500W front hub motor: Solid, responsive drive performance in a compact three-wheel platform.
- Three selectable speed settings: Lets the rider match the pace to the space, surface and experience level.
- Compact Padded Saddle: A simple backless seat provides an open, uncluttered riding position.
- Large pneumatic tires: A 16-inch front tire and 12.5-inch rear tires add useful rollover and tire cushioning on maintained surfaces.
- Open step-through frame: Easy to approach without swinging a leg over a high centre frame.
- Forward and reverse: Practical manoeuvring for garages, yards, venues and other suitable spaces.
- Fold-down handlebar stem: Reduces the scooter's stored height for a garage, trailer or suitable vehicle.
Seat choice: Choose the Compact Padded Saddle for a low-profile, open riding position. Choose the Comfort Backrest Seat when a padded backrest is preferred for longer seated use.
Technical Specifications
| Model | SHOK Zappy, T6-3 platform |
|---|---|
| Seat configuration | Compact padded backless saddle |
| Motor | 48V, 500W front in-wheel hub motor |
| Battery system | 48V 12Ah sealed lead-acid, 576Wh nominal |
| Speed settings | Three selectable settings |
| Maximum speed | Up to approximately 30 km/h (18.6 mph) |
| Estimated range | Up to approximately 40 km (24.9 miles) per charge under favourable conditions |
| Maximum rider weight | 120 kg (265 lb), including carried items |
| Approximate climbing ability | Up to approximately 10 degrees under favourable load, traction and battery conditions |
| Approximate turning radius | 76 cm (30 in) |
| Approximate ground clearance | 5 cm (2.0 in); clearance varies by measurement point |
| Brake system | Hand-operated front drum brake |
| Front tire | 16 x 2.50 pneumatic |
| Rear tires | 12 1/2 x 2 1/4 pneumatic |
| Suspension | No suspension on this lead-acid configuration |
| Seat height | Approximately 61 to 74 cm (24 to 29 in), adjustable |
| Overall dimensions | Approximately 102 x 68 x 98 cm (40.2 x 26.8 x 38.6 in) |
| Stem-lowered transport size | Approximately 102 x 68 x 72 cm (40.2 x 26.8 x 28.3 in), with seat removed as needed |
| Net weight | Approximately 50 kg (110.2 lb) |
| Frame | Steel |
| Controls | Keyed power, LED display, three speed settings, throttle, forward and reverse, horn and headlight |
| Lighting | Front LED headlight |
| Charging time | Approximately 4 to 6 hours after typical use; allow up to 8 hours from a deep discharge |
| Charger | 48V 2A charger included; AC 110 to 240V, 50/60Hz input |
| Package size | Approximately 75.5 x 71.5 x 51 cm (29.7 x 28.1 x 20.1 in) |
| Shipping weight | Approximately 55 kg (121.3 lb) |
Canadian Parts and Product Support
SHOK Mobility is supplied and supported in Canada by Multi-National Parts Supply in Cambridge, Ontario. Supporting Canadian dealers and riders since 2004, Multi-National Parts Supply stocks SHOK replacement and service parts and provides technical assistance for SHOK products. Keep the model and serial number available when requesting support. Parts availability can vary by component and production run.
Operating note: The Zappy is a higher-speed seated electric scooter. Begin in the lowest speed setting, reduce speed well before every turn and never turn sharply at speed. Range, speed, climbing ability and stopping distance vary with total load, grade, traction, temperature, battery charge and condition, tire pressure and driving style.
Where to ride: Check the rules that apply before operating on roads, sidewalks, pathways or other public property. Wear appropriate protective equipment for the location and speed. Avoid wet, loose, icy, heavily rutted or side-sloped surfaces.
