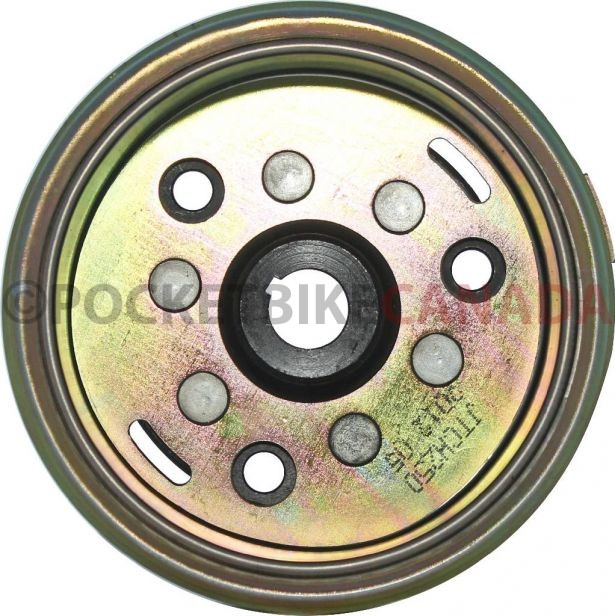

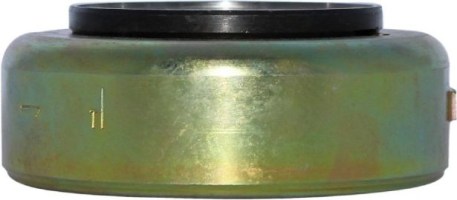

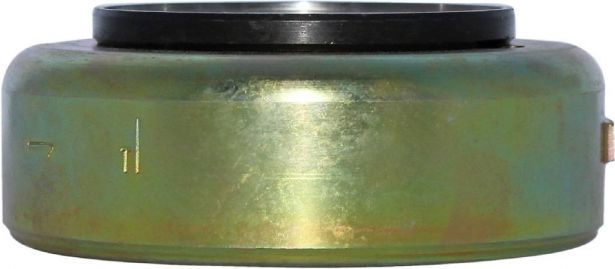

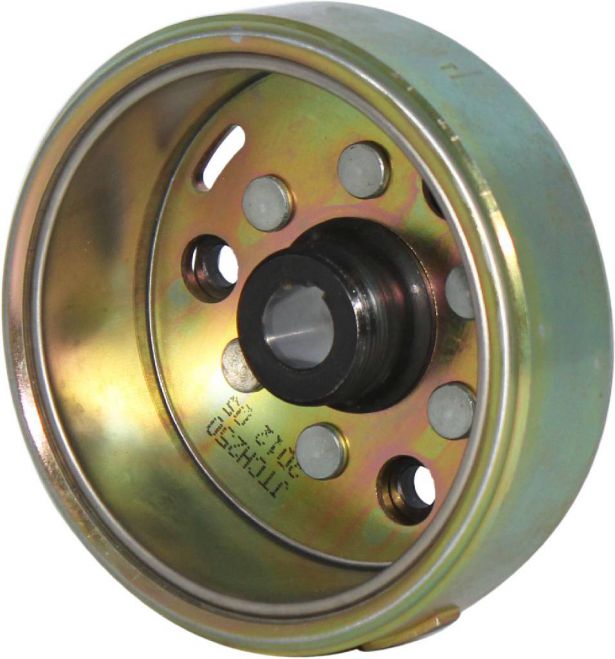

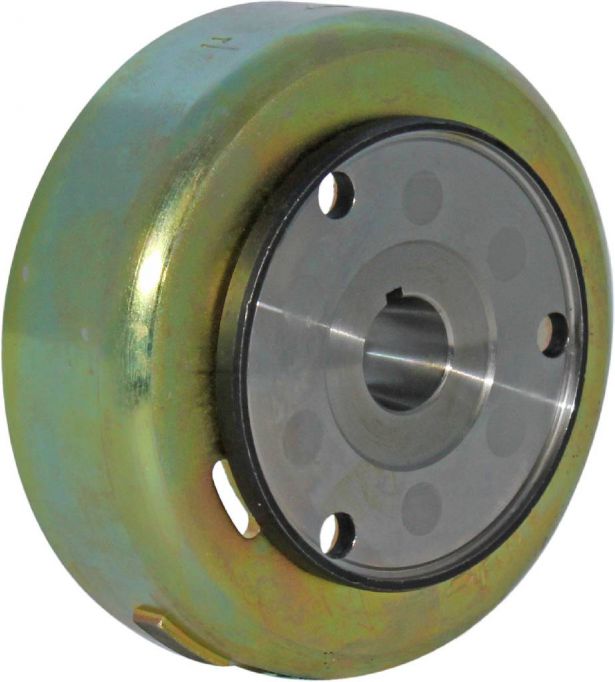

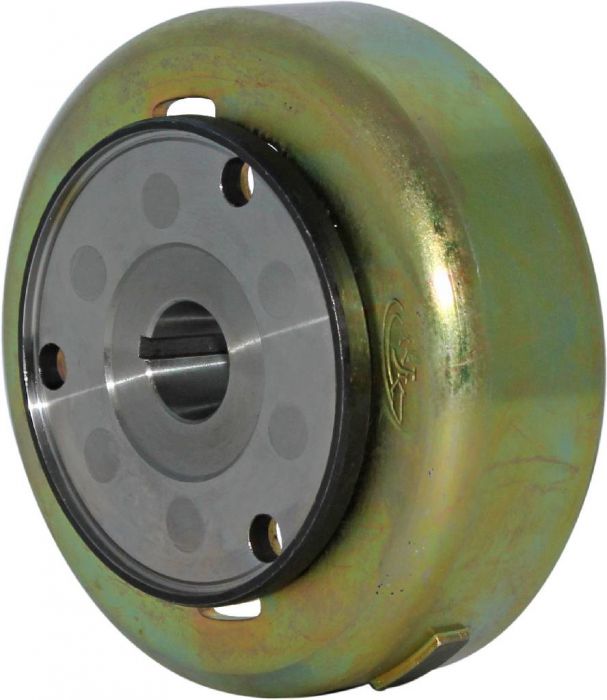

Magneto Cylinder - 200cc, 250cc, CF Moto Profile - 30A9524 - PBC2265F1
|
Express
ON, Warehouse
"Express" items are automated and typically shipped out next available business day and delivered within 4 day. In Stock
|
This magnetor cylinder / stator housing / flywheel rotor is typically found in the Flywheels / Magnetor Assy / Crankshaft Assy & Piston / Magneto Comp. / Magneto / Stator And Flwheel / Electrical Start Propeller / Driver Plate Assy / Generator section of several part manuals. Commonly used for but not limited to water cooled 172MM / CF250 / CN250 / 250cc engines. It is most popularly known for its use in Helix / Fusion / Spazio CN250 Scooter, CF Moto V3 / V5 / CF250 172MM / CF250 172MM-A / CF250 172MM-B / CF250 172MM-C / CF250T-5A, Baja Reaction 250 / BR250 / Dune 250 / DN250, Diamo Wolverine XF250-2A-2AR, Hammerhead SS250 / Twister UM250IIR, JM Star 250, Jonway 250 / YY250 Scooter / YY250T, Joyner 250 / Sand Viper 250cc / Viper JNSZ250DN / Viper 250 (SZ250DI) / Dirt Devil 250 (SZ250DS), Kinroad 250cc XT250GK-2 / XT250 GK-7, Lance Powersports Duke Touring 250 / Vintage 150cc, NST, QLink Legacy 250 / Commuter 250, Roketa Bali 250 / GK-06 (KTX-250 WJF) / GK-13 (KTX-250W)(L5G) / GK-19 (KTB-250W)(L5C) / MC-13 / MC-54 / MC-68A, SL250-2 / SLGK-250-2A / XF250-2A Buggy / XF2502AR Buggy, Tank Sports Touring DE (TK250T-2) 250 4T, Tao Tao, Lince 250cc, BMS, Yerf Dog, DMC Racing, Tomerlin Crossfire 250 , Carter Talon/ Brothers, and American Sportsworks, as well as many other brands of ATVs, dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.
Approximate Dimensions:
- Inner Diameter: 104.4mm (4.11")
- Outer Diameter: 128mm (5.04")
- Overall Height: 49.8mm (1.96")
- Center Hole Mount (Tapered): 21.5/17mm (0.85"/0.67")
- Mounting Holes (Center - Center): 55mm (2.17")
- Mounting Holes: 8.6mm (0.34")
Manufacturer Part Numbers:
- CF Moto Part Numbers: 0110-031000, 172MM-031000 “ROTOR COMP.”
- Joyner Sand Viper 250cc Part Number: 172MM-031000 “FREE-WHEELING
- Joyner Dirt Devil 250cc Part Numbers: 172MM-031000, SZ15100007 “ROTOR COMP.” or “FLYWHEEL ASSY”
- Hammerhead Part Number: 172MM-031000 “FLYWHEEL”
- QLink Part Number: 172MM-031000 “ROTOR COMP.”
- Baja Reaction 250cc Part Number: BR250-394 “FLYWHEEL”
- Baja Dune 250cc Part Number: DN250-559 “FLYWHEEL”
- Kinroad Part Number: 31110-SCC0-0000, “FLYWHEEL COMP.”
- OEM and Jonway 250cc Part Number: YYSLL2501301 “GENERATOR ASSY”
- SunL and Diamo Part Number: XF172MM-1051100 “FLYWHEEL COMP.”
