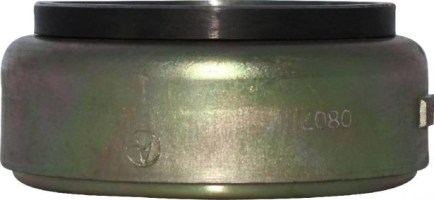

Magneto Cylinder - ATV, Xingyue ST260 - 30A9536 - PBC2356F1
|
Express
ON, Warehouse
"Express" items are automated and typically shipped out next available business day and delivered within 4 day. In Stock
|
$65.06
Prices shown in:
U.S. Dollars
USD
This magneto cylinder / stator housing applies to (and is not limited to) 150cc to 400cc engines. Most commonly used for 260cc and 300cc ATVs, dirt bikes, scooters, buggies and other motorized vehicles from a wide range of manufacturers.
Common Xingyue model names consist of variations of "Xingyue ST260 ATV", "Xingyue 260cc ATV", "XY ST260 ATV", "XY 260cc ATV" etc. Common listed Xingyue stator / magneto cylinder housing part number is 127004030020 and formal description is "MAGNETO MAGNET".
- Xingyue: 127004030020
- Inner Diameter (ID): 94.9mm
- Outer Diameter (OD): 118.3mm
- Overall Height: 49.8mm
- Center Hole Mount (Tapered): 24.6/20mm
- Mounting Holes (center - center) (Side by Side): 75mm
- Mounting Holes (center - center) (Across): 37mm
- Mounting Holes: 9mm
