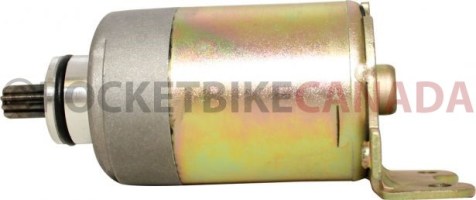

Starter - ATV/Scooter, CH125 - 30A1200 - PBC2063F1
|
Express
ON, Warehouse
"Express" items are automated and typically shipped out next available business day and delivered within 4 day. In Stock
|
This starter motor unit with 9 splines / teeth is typically found in the Starter Motor section of several part manuals. Commonly used for but not limited to 152MI / 157MJ / 158MJ, 125cc, 150cc, and 200cc engines with VIN numbers JH2KF010-FK000019 / JH2KF010-FK009440 / JH2KF011-FK000005 / JH2KF011-FK002080 / JH2KF012-FK000024 / JH2KF012-FK007283 / JH2KF012-GK100001 / JH2KF012-GK115201 / JH2KF013-FK000001 / JH2KF013-FK002227 / JH2KF013-GK100006 / JH2KF013-GK105161. It is most popularly known for its use in:
Honda CH125 SPACY 124CC MITSUBA SYSTEM (1986-1996)
CH125 1992 (N) JAPAN JF03-110 / CH125 1993 (P) JAPAN JF03-120 / CH125 1994 (R) JAPAN JF03-130 / CH125 SPACY 1991 (M) SWITZERLAND / CH125 SPACY 1992 (N) FRANCE YB / CH125 SPACY 1993 (P) FRANCE / CH125 SPACY 1993 (P) ITALY / CH125 SPACY 1993 (P) ITALY LL / CH125 SPACY 1993 (P) SWITZERLAND / CH125 SPACY 1994 (R) FRANCE,
Honda CH150
CH150 ELITE 153CC (1985-1987) / CH150 A (1985) / CH150 AC (1985),
Honda CH150D ELITE 153CC (1985-1986)
Aprilia Leonardo 125 (1996-2001) / Leonardo 125T (2001-2004) / Leonardo 150 (1996-2001) / Leonardo 150 ST (2001-2004) / SCARABEO 125CC ROTAX ENGINE (1999-2004) / SCARABEO 150CC ROTAX ENGINE (1999-2004) / SCARABEO 200CC ROTAX ENGINE (1999-2004), BMW C1 125 124CC BOMBARDIER (1999-2003) / C1 200 176CC BOMBARDIER (2001-2003), as well as many other brands of ATVs, UTVs, motorcycles, dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.
Approximate Dimensions and Specifications:
- Unit Type: Mitsuba
- Manufacturer Design Type: PMDD
- Voltage: 12V
- Rotation: Clockwise (CW)
- Number of Splines / Teeth: 9
- Distance between the Bolt Holes: 38mm (1.49”)
- Gear Outside Diameter: 11.30mm (0.44”)
- Gear Shaft or Gear Base Outside Diameter: 29.90mm (1.18”)
- Length (gear apex to motor base): 131.25mm (5.17”)
- Motor Outside Diameter: 59.50mm (2.34”)
- Weight: 3lbs or 1.36kg
Interchangeable Part Numbers / Cross References:
- Honda Part Numbers: 31210-KN7-673, 31200-KN7-405, 31210KN767, 31200KN7405 “MOTOR COMP., START” or “MOTOR UNIT, STARTER (MITSUBA)” or “STARTER MOTOR ASSY.”
- Aprilia Part Numbers: AP0295620, AP0295625, AP0296390, AP295625 Starter Motor Unit
- BMW Part Numbers: 12-40-7-653-356, 12407653356 Starter Motor Unit
