Stator - Magneto Coil, 500cc, 550cc - 30A9153 - PBC2355F1
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.

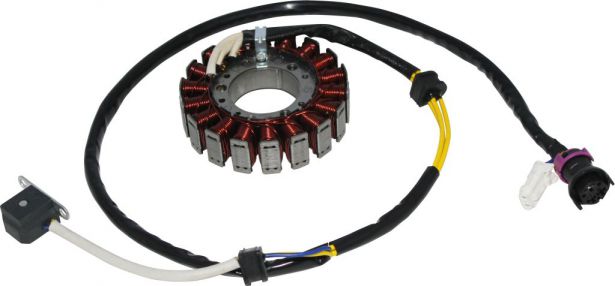

Stator coil aka magneto coil for 500cc, 550cc EFI (Electronic Fuel Injected) ATVs. Most commonly used for (but not limited to) Chironex Bandito 550cc EFI ATV, GIO Rock Liner 550cc EFI ATV, Buyang 550cc EFI ATV as well as many other clones, rebrands and similar displacement machines.
Common Chironex model name is primarily listed as "Chironex 550cc Bandito", "Chironex 550 Bandito EFI ATV" and "Chironex XT 550 EFI". Common listed Chironex Bandito stator part number is 2.1.14.0570 and listed as "ROTOR ASSY" in their parts lists. Also applies to some variations of Chironex Komodo 500 machines.
Common Gio (giovanni aka Gio Motors) model name is primarily listed as "Gio 550cc Rock Liner", "Gio 550 Rock Liner EFI ATV" and "Gio 550 EFI 2-up".
Common Buyang model name is primarily listed as "Buyang 550cc Bandito", "Buyang 550 EFI ATV", "Buyang N550 EFI ATV", "Buyang 550D" and "Buyang FA-K550 ATV". Common listed Buyang N550 stator part number is 2.1.14.0570 or 2.1.14.0575 and is listed as "COIL ASSY" or "COIL ASSEMBLY (TRIANGULAR CONNECTION)" in their parts lists.
Approximate dimensions:- Outside Diameter: 103.91mm
- Centre Hole Diameter: 42mm
- Mounting Hole (centre-centre): 46.8mm
- Bolt Hole: 6.6mm

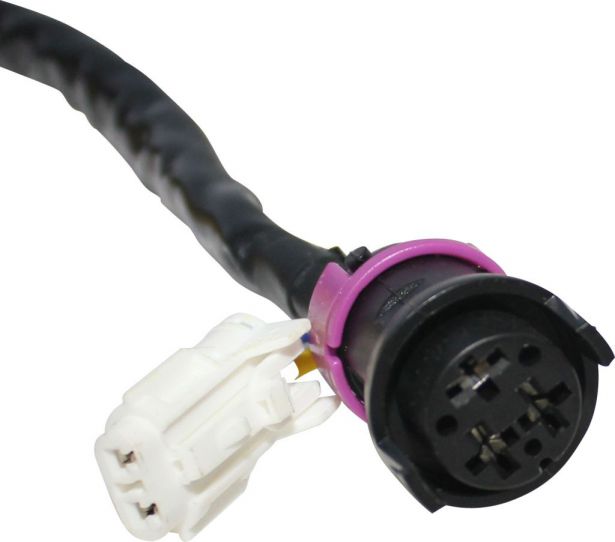

- Harness Length: 90cm
- Pickup Wire Length: 18cm
- Pickup Hole (centre-centre): 35mm
- Manufacturer PN: 2.1.14.0570
- Manufacturer PN: 2.1.14.0575
