Stator - Magneto Coil, C100-6, 5 Wire - 30A9307 - PBC2384F1
|
Express
ON, Warehouse
"Express" items are automated and typically shipped out next available business day and delivered within 4 day. In Stock
|
$44.73
Prices shown in:
U.S. Dollars
USD

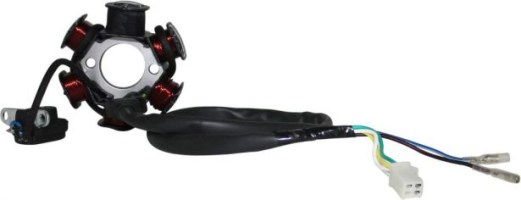

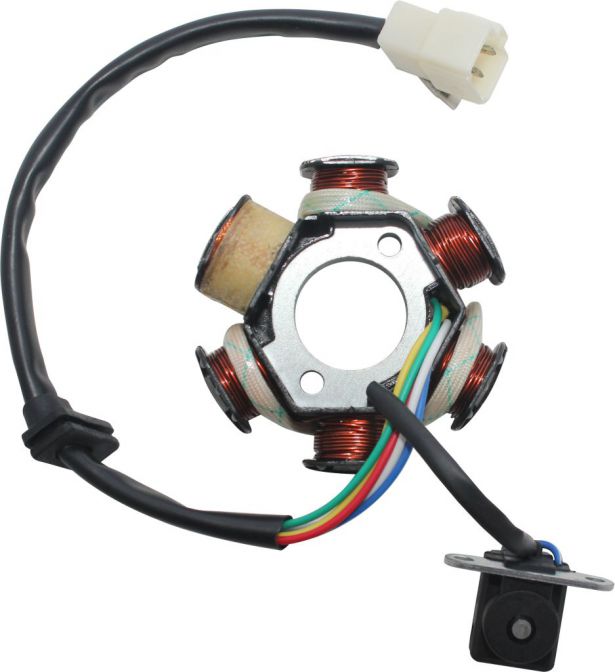

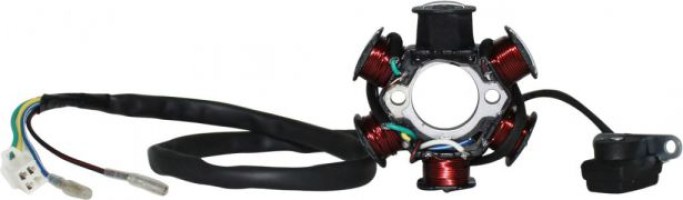

Stator Magneto Coil - C100-6. 5 wire, one 4 pin 3 wire male plug and two male push pin wires. Approximate dimensions:
- Outside Diameter: 83mm
- Centre Hole Diameter: 29mm
- Mounting Hole (centre-centre): 41mm
- Bolt Hole: 6.6mm
- Harness Length: 62cm
- Pickup Wire Length: 50cm
- Pickup Hole (centre-centre): 35mm
