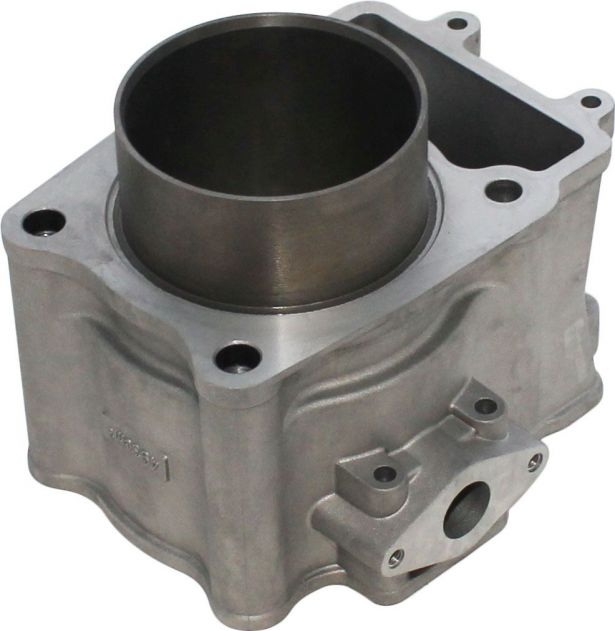

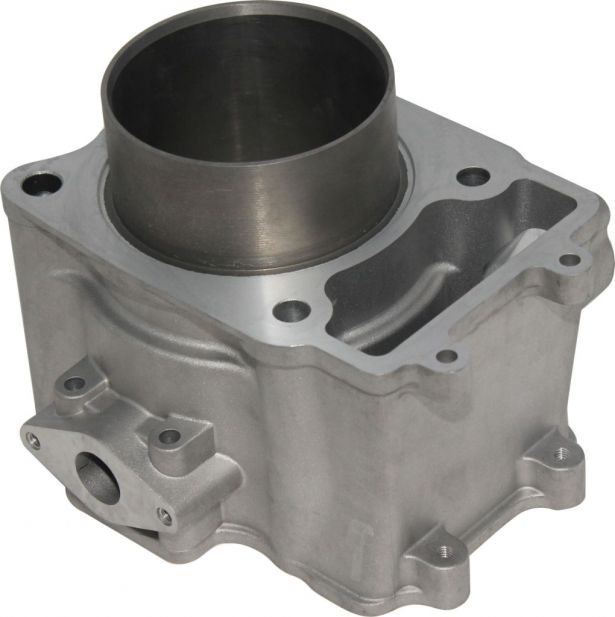

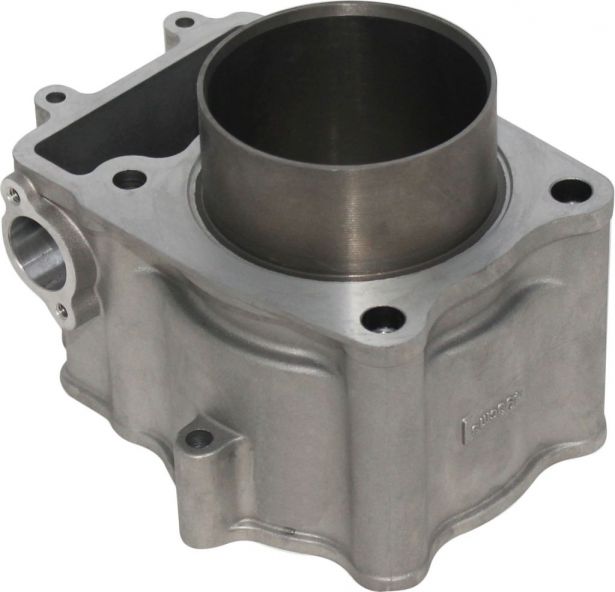

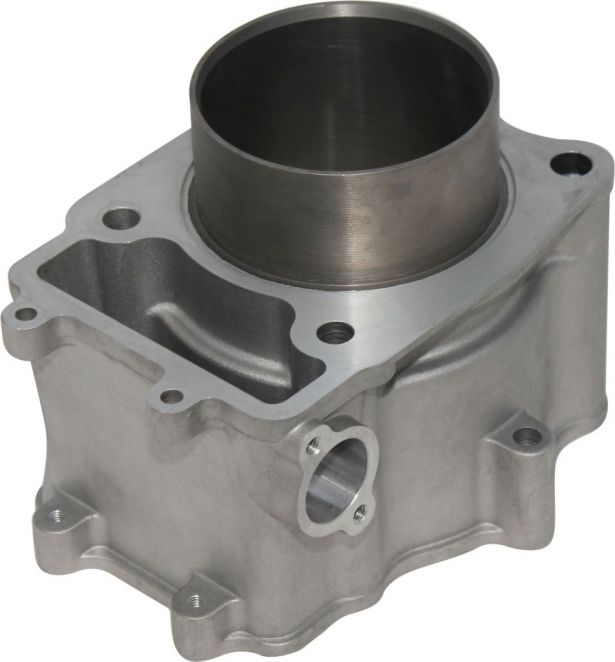

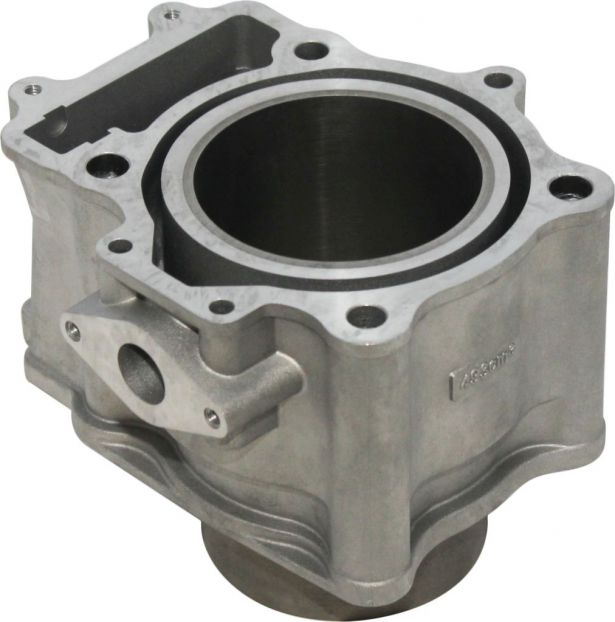

This cylinder block is typically found in the Cylinder Body / Tensioning Assembly section of several part manuals. Commonly used for but not limited to 4-stroke liquid cooled CF500 / CF188 / 500cc / 520cc engines. It is most popularly known for its use in CF188 / CF188-B / CF500-2 CForce X5 / CF500-2A CForce X5 / CF500-3 UForce U500 U5 / CF500-A CForce X5 / CF500-5B X500 SWB / UForce 500 / UForce 600 / CForce 500 / UTV 500 Rancher / Matrix 525 / X5 Basic / X5 Classic / CF500-X5, Chironex Spartan 500cc / Komodo 500, GOES 520 UTX / 520 MAX, Diamo Adventure, Hammerhead Off-Road Titan 500 UTV, Powermax Chase 500 & 500XL, WT Motors Ricambi Alaska WT500 / Ram WT500, Journeyman Gladiator RX510 / Gladiator X5/X5-A Valex / Gladiator UTV 530, Quadzilla 500ES LWB / 500 ES Terrain / Terrain 500 / RL500 Buggy, Explorer Atlas 500, as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names. This part number is also available as part of a complete set in our part number 20A8980.

Approximate Dimensions:

• Inner Diameter of the Cylinder: 87.5mm (3.44”)
• Displacement: 500cc
• Outer Diameter of Cylinder Skirt: 93.5mm (3.68”)
• Middle Height of Cylinder: 100mm (3.94”)
• Total Height of Cylinder: 139.5 mm (5.49”)

Manufacturer Part Numbers:

• CF Moto Part Numbers: 0180-023100, CF188-023100 “CYLINDER”
• GOES Part Number: 0180-023100 “CYLINDER”
• Chironex Part Number: CF188-023100 “CYLINDER”
• Diamo Part Number: 08-038-3707 “CYLINDER”
• Powermax Part Number: CF188-023100 “CYLINDER”
• Explorer Part Number: CF188-023100 “CYLINDER”
• Hammerhead Part Number: CF188-023100 “CYLINDER”
• Journeyman Part Number: 0180-023100 “CYLINDER”
• WT Motors Part Number: QN50010780 “CYLINDER”

Associated Part Numbers:

• 0180-023100
• 0180-023004
• 0180-040004
• 0180-040002
• 0180-040003-0050
• 0180-0400A0
• 0180-022200
