CDI - Motorcycle, Dirt Bike, ATV, CG125 - 10A5200 - PBC2377F1
|
Express
ON, Warehouse
"Express" items are automated and typically shipped out next available business day and delivered within 4 day. In Stock
|
$28.46
Prices shown in:
U.S. Dollars
USD

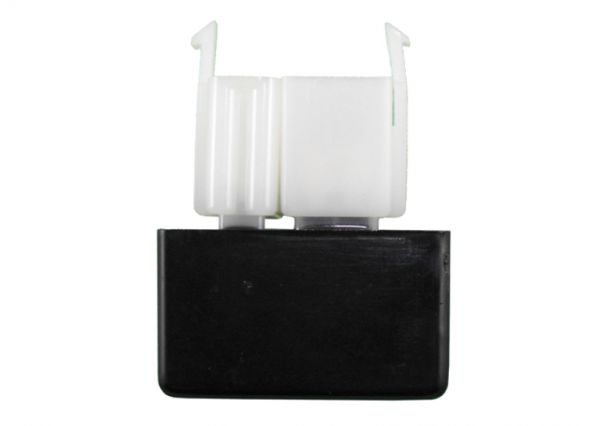

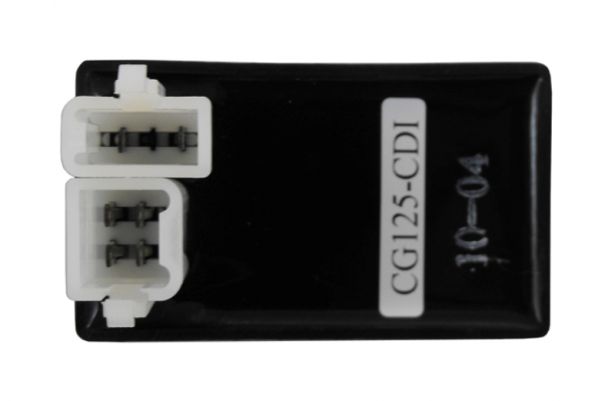

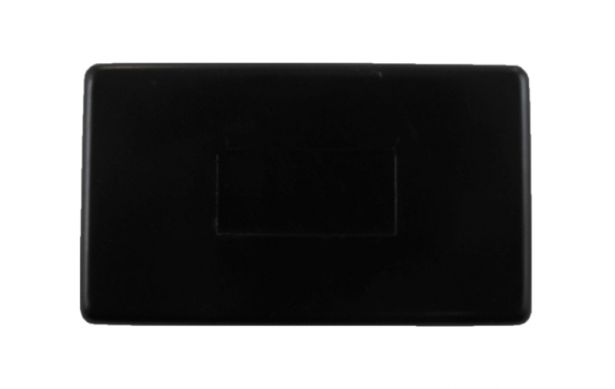

This CG125 CDI module is typically found in the CDI Unit section of several part manuals. Commonly used for but not limited to 125cc engines. It is most popularly known for its use in Honda CG 125cc Titan / CG 125cc ML 1988 / CG 125cc Today / CG 125cc Today 1989-96, as well as many other brands of motorcycles, ATVs, dirt bikes, scooters, go karts (buggies), and engines with alternative profile names. This CDI module has a 4 pin plug / connector with 4 pins (white) + 3 pin plug / connector with 2 pins (white).
Approximate Dimensions of the Casing:
- Length: 65mm (2.56”)
- Width: 38mm (1.50”)
- Height: 22mm (0.87”)
Replaces OEM Part Numbers:
- Honda Part Numbers: 30410-KCH-751, 30410-KG7-0031, CI622, 30410KY0-971, 30410-KG7-042
- Espel Part Number: 1302
- DB Electrical and Arrowhead Part Number: IHA6004
- J&N Part Number: 160-02150
- Kymco Part Number: 30410-KG7-042
Application references:
- HONDA: CG125/150
- NX: 150/20
