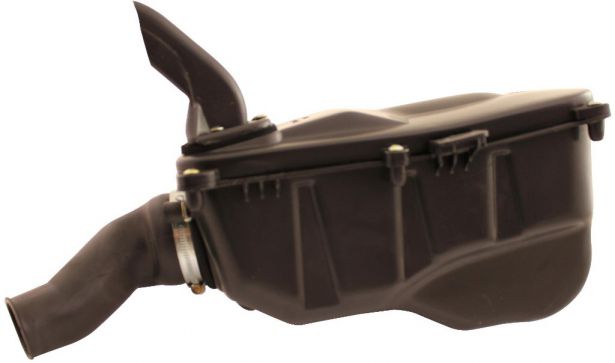

This air filter / air cleaner assembly is typically found in the Air Cleaner section of several part manuals. Commonly used for but not limited to 260cc, 300cc, and 325cc engines. It is most popularly known for its use in CF Moto Allroad 300, Linhai 260cc / 300cc / LH300, Buyang 300 4x4 / FA-H300 / FA-D300 / ZR300U-4X4 / Monster 300cc / Daymak Grunt 300 / Gio Bear 300 / Midwest 300cc / ZMC Titan 300 / Pioneer 300cc, Chironex Bandito, Asun 300cc, Atomik Krusher 300cc 2WD, Benyco 300, GMX Motorbikes Krusher Fa-D300B 4WD, GOES 330, Quadzilla 325 4x4, Stels 300B / Hunter XTX300B, Delta Force 300, Keeway GTX 300, as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names. This product has been produced for 8 years and can be applied to 2x4, 4x4 and 4x4 IRS (Independent Rear Suspension) models.

Approximate Dimensions of the Air Cleaner Box:

• Front Height: 138mm (5.43”)
• Top Width: 171mm (6.73”)
• Bottom Width: 149mm (5.87”)
• Total Length: 420mm (16.54”)
• Air Intake / Air Inlet Height:105mm (4.13”)

Approximate Dimensions of the Filter:

• Outer Diameter of the Filter: 80mm (3.15”)
• Inner Diameter of the Filter: 62mm (2.44”)
• Total Diameter of the Filter: 100mm (3.94”)
• Length: 218mm (8.58”)

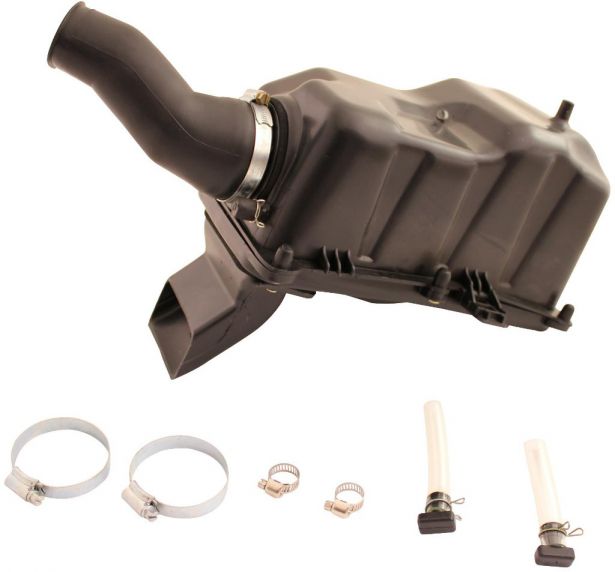

Includes Part Numbers:

• 2.5.01.0020 AIR CLEANER JOINT
• 2.5.01.0120 HOSE CLAMP B
• 2.5.01.0090 HOSE CLAMP A
• 2.5.01.0050 COVER AIR CLEANER
• 2.5.01.0060 AIR CLEANER CASE
• 2.5.01.0070 ELEMENT COMP AIR CLEANER / FILTER
• 2.5.01.0080 FILTER COVER
• 6.4.01.0030 CLIP (Quantity:2)
• 2.5.01.0100 HOSE
• 2.5.01.0110 PLUG
• 2.5.01.0040 HOSE CLAMP C
• 0.02.00630 BOLT 5X12 (Quantity:10)

Manufacturer Part Numbers:

• Chironex Part Number: 2.5.01.0000 “AIR CLEANER ASSY”
• Buyang Part Number: 2.5.01.0000 “AIR CLEANER ASSY”
• Delta Force Part Number: 2.5.01.0000 “AIR CLEANER ASSY”
• Atomik Part Number: 2.5.01.0000 “AIR CLEANER ASSY”
• GMX Motorbikes Part Number: 2.5.01.0000 “AIR CLEANER ASSY”
• GOES Part Number: 2.5.01.0000 “AIR CLEANER ASSY”
• Benyco Part Number: 2.5.01.0000 “AIR CLEANER ASSY”
• Quadzilla Part Number: 2.5.01.0000 “AIR CLEANER FULL ASSEMBLY”
• Stels Part Number: 2.5.01.0000 (LU018915) “AIR CLEANER ASSY”
  • Stels Air Filter Assembly Includes Part Numbers:
    • 2.5.01.0020 (LU018916) “AIR CLEANER JOINT”
    • 2.5.01.0120 (LU019855) “HOSE CLAMP B”
    • 2.5.01.0090 (LU019858) “HOSE CLAMP A”
    • 2.5.01.0050 (LU018917) “AIR CLEANER COVER”
    • 2.5.01.0060 (LU018918) “AIR CLEANER CASE”
    • 2.5.01.0070 (LU018919) “FILTER”
    • 2.5.01.0080 (LU018920) “FILTER COVER”
    • 6.4.01.0030 (LU019435) “CLIP 13” (Quantity: 2)
    • 2.5.01.0100 (LU018921) “HOSE”
    • 2.5.01.0110 (LU018922) “PLUG”
    • 2.5.01.0040 (LU019859) “HOSE CLAMP C”
    • 0.02.00630 (LU015864) “BOLT M5x12” (Quantity: 10)
